Solar Home Systems (SHS)
Our Solar Home Systems are solar power supply devices designed to power household appliances in areas insufficient with power supply. They adopt the digital circuit technology to power loads DC 12V/24V and/or AC 220V. Characterized by their easy installation, perfect function, stable and reliable performance, our Solar Home Systems provide you with ideal solutions for electrification.

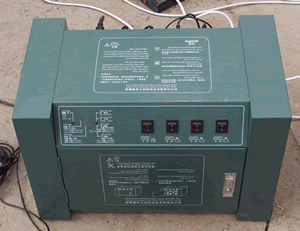

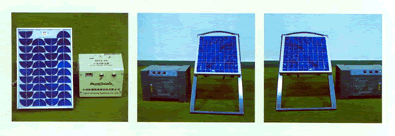

These Solar Home Systems are comprised of the solar panel(s) and a box. This box contains the battery, charge controller, and an inverter (if AC system). Along with these main components, the system comes with cables as well as light bulbs (DC or AC as applicable). DC lights and other small DC appliances are available in the open market, or can be provided by EES if order is in large quantities.
Below you will find our range of solar home systems, along with its specifications.
| Specification | 20W | 25W | 50W | 75W |
|---|---|---|---|---|
| Rated Voltage | 12V | 12V | 12V | 12V |
| Solar Module | 20Wp | 25Wp | 50Wp | 75Wp |
| Rated Load current | 5A | 5A | 8A | 10A |
| Battery capacity | 24Ah | 40Ah | 80Ah | 100Ah |
| Rated output voltage | 12V | 12V | 12V/220V | 12V/220V |
| Specification | 80W | 100W | 150W | 200W |
|---|---|---|---|---|
| Rated Voltage | 12V | 12V | 12V/24V | 12V/24V |
| Solar Module | 80Wp | 100Wp | 150Wp | 200Wp |
| Rated Load current | 10A | 10A | 15A | 20A |
| Battery capacity | 100Ah | 120Ah | 200Ah | 240Ah |
| Rated output voltage | 12V/220V | 12V/220V | 12V/220V | 12V/220V |
Daily working time: 4 - 6 hours
Ability of continuous power supply: 3 days (4 - 6 hours everyday)
Static state current: <60mA
Collocated lamp: 60mA 7W/9W thulium tricolor high efficiency energy saving lamp
Applied surroundings: Indoors application
Protection grade: IP22
Protection function: Lack of voltage, over-charge, over-load, short circuit, reverse connection
