30kW (30,000W) Specifications
| Rated power (W) | 30,000 |
| Rated voltage (DCV) | 360 |
| Rated current (DCA) | 83 |
| Rotor diameter (m) | 12.0 |
| Blade material | GFRP |
| Start-up wind speed (m/s) | 2.5 |
| Rated wind speed (m/s) | 12.5 |
| Cut-out wind speed (m/s) | 20 |
| Survival wind speed (m/s) | 45 |
| Net weight (T) | 1.1 |
| Wind turbine type | Upwind |
| Rated rotating speed (rpm) | 75 |
| No. of blades | 3 |
| Hydraulic tower height (m) | 18 |
| Yaw mechanism | Hyrdaulic |
| Annual yield (kwh) | 70,000 |
| Yaw mode | Auto/manual |
| Cable lenght (m) | 20 |
| Efficiency | 0.6 |
| Wind turbine tilt-angle | 6 degrees |
| Protection mode | Yaw Hyrdraulic brake Dumpload |

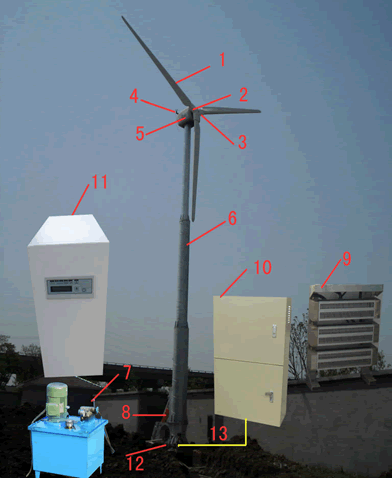

1- Blades (3 pieces)
2- Hub (1 piece)
3- Nose cone (1 piece)
4- Anemometer/dogvane (1 piece each,non-integrated)
5- Generator (1 piece)
6- Hydraulic tower (3 sections) [or free-standing tower]
7- Electrical hydraulic pump (1 set) [if hydraulic tower is used]
8- Cylinder (1 set)
9- Dumploader (1 piece)
10-Controller (1 set)
11-Off-grid inverter (1 set)
12-Tower accessories (1 set)
13-Cable from generator to controller (30 cores: 20m,
3 cores: 20m)
